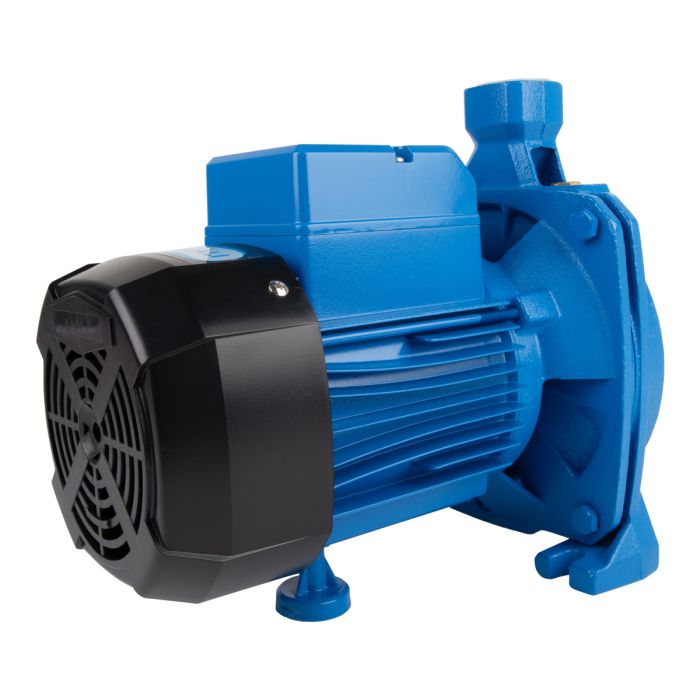

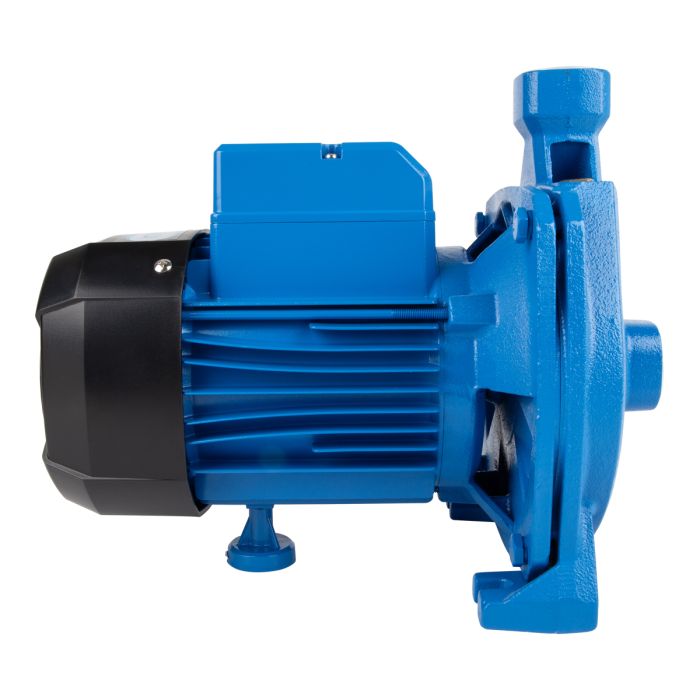

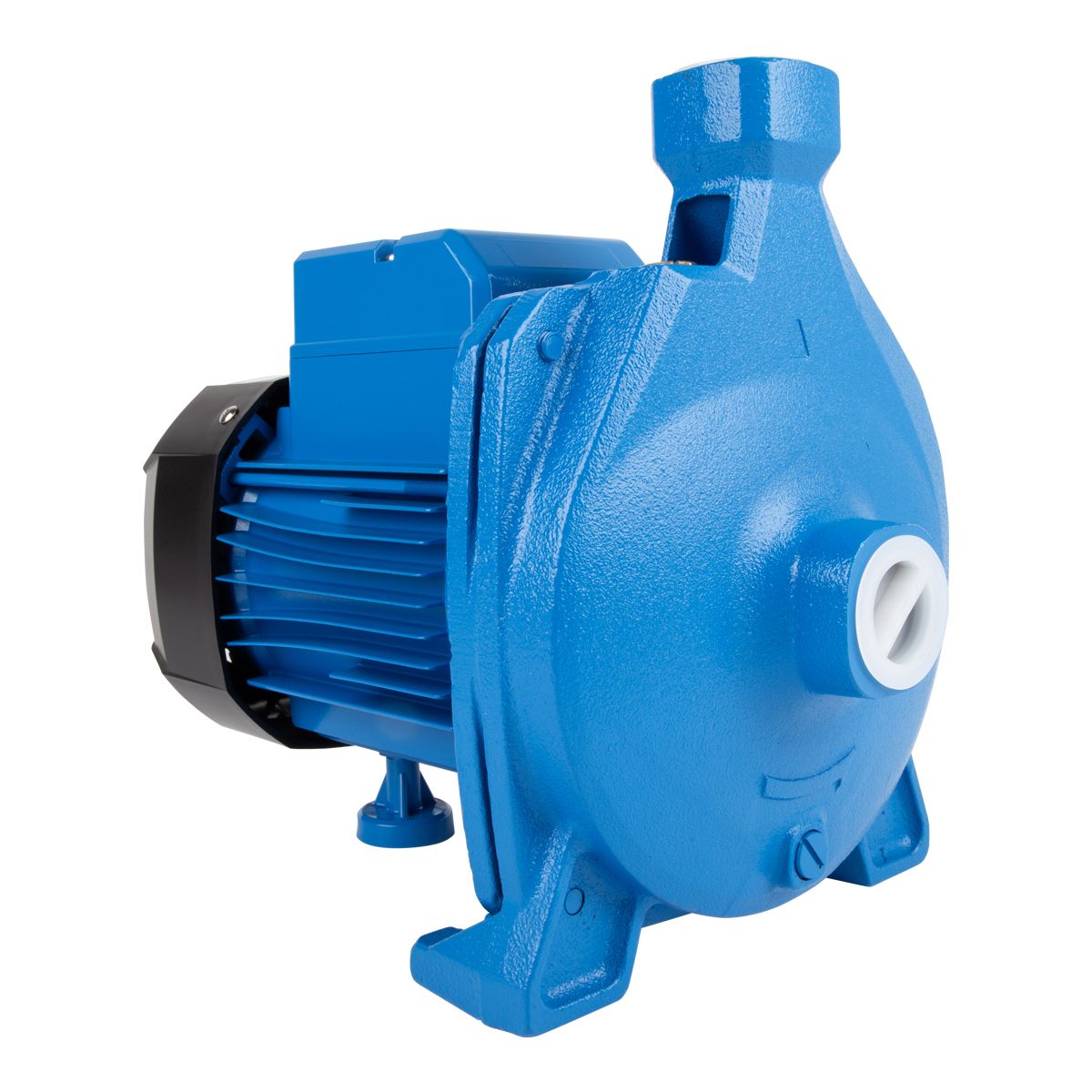

Pascali Centrifugal Pump 230V Range 0.37kW – 1.5kW 230v
Pascali Single Impellor Centrifugal Pump; 0.37Kw 230V/50Hz. For Household Civil And Industrial Applications; With A Very Flat Curve To Guarantee Constant Pressure Even When The Delivery Is Low. Total Suction Lift Up To 7M. Delivery Qmax 4.8 Cubic Meter/Hour And H.Max 2.2Bar. Max. Working Pressure: 6 Bar. Inlet & Outlet 25mm. Ip44 Protection.
Pascali Single Impellor Centrifugal Pump; 0.55Kw 230V/50Hz. For Household Civil And Industrial Applications; With A Very Flat Curve To Guarantee Constant Pressure Even When The Delivery Is Low. Total Suction Lift Up To 7M. Delivery Qmax 5 Cubic Meter/Hour And H.Max 2.6Bar. . Max. Working Pressure: 6 Bar. Inlet & Outlet 25mm. Ip44 Protection. To Be Installed In A Covered And Well Ventilated Environment.
Pascali Single Impellor Centrifugal Pump; 0.75Kw 230V/50Hz. For Household Civil And Industrial Applications; With A Very Flat Curve To Guarantee Constant Pressure Even When The Delivery Is Low. Total Suction Lift Up To 7M. Delivery Qmax 6 Cubic Meter/Hour And H.Max 3;2Bar. Max. Working Pressure: 6 Bar. Inlet & Outlet 25mm. Ip44 Protection. To Be Installed In A Covered And Well Ventilated Environment.
Pascali Single Impellor Centrifugal Pump; 1.1Kw 230V/50Hz. For Household Civil And Industrial Applications; With A Very Flat Curve To Guarantee Constant Pressure Even When The Delivery Is Low. Total Suction Lift Up To 7M. Delivery Qmax 7;2 Cubic Meter/Hour And H.Max 4 Bar. Max. Working Pressure: 6 Bar. Inlet 32mm & Outlet 25mm. Ip44 Protection. To Be Installed In A Covered And Well Ventilated Environment.
Pascali Single Impellor Centrifugal Pump; 1.5Kw 230V/50Hz. For Household Civil And Industrial Applications; With A Very Flat Curve To Guarantee Constant Pressure Even When The Delivery Is Low. Total Suction Lift Up To 7M. Delivery Qmax 7;2 Cubic Meter/Hour And H.Max 4;8 Bar. Max. Working Pressure: 6 Bar. Inlet & Outlet 25mm. Ip44 Protection. To Be Installed In A Covered And Well Ventilated Environment.
DATA SHEET:
